Streaming

Streaming is basically a while true: over data in micro-batches

It allows us to process data as it arrives, rather than waiting for the entire dataset to be available

Typical Streaming architectures will have:

• Sources: Where data is originating from, e.g. Kafka, Kinesis, etc.
• Sinks: Where data is going to, e.g. Databases, Data Lakes, etc.
• Stream Processing Engine: The core component that processes the incoming data streams. Examples include Apache Spark Streaming, Apache Flink, and Apache Storm
• Stream Processing Framework: The programming model used to define the processing logic. Examples include Spark Structured Streaming, Flink DataStream API, and Storm Topology
• Orchestration: Manages the execution and scaling of the stream processing jobs. Examples include Apache Airflow, Apache NiFi, and Kubernetes
• Monitoring and Logging: Tools to monitor the health and performance of the streaming pipeline. Examples include Prometheus, Grafana, and ELK Stack (Elasticsearch, Logstash, Kibana)
• Checkpointing and State Management: Mechanisms to save the state of the stream processing job to recover from failures. Examples include Apache Flink's state backend, Spark Streaming's checkpointing, and Kafka Streams' state stores

Generic Architecture

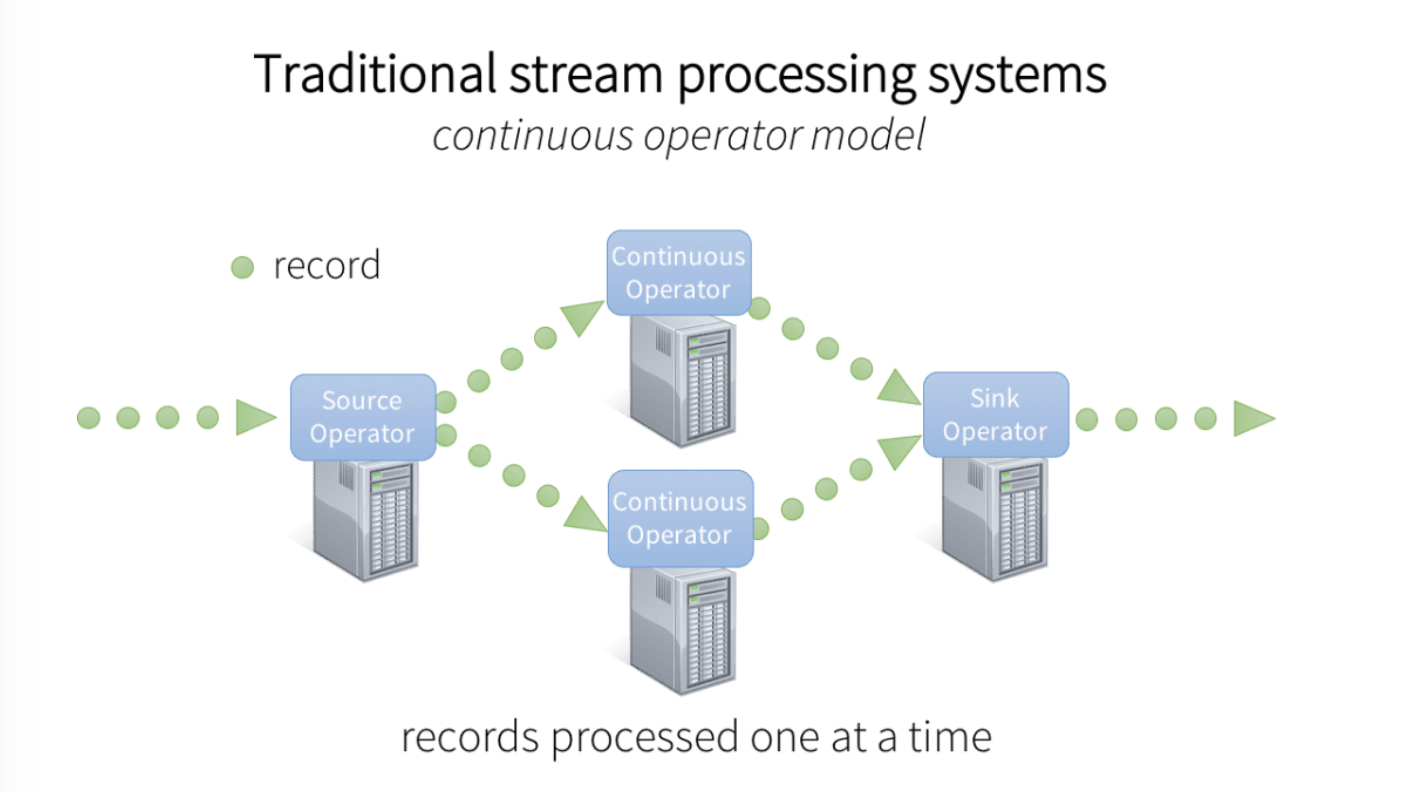

• In the past generic streaming architectures were based on micro-batches and continuous operators
  • We would collect data for a few seconds, then process it, and repeat

Key Concepts

• Micro-batches: Instead of processing data as it arrives, we collect it into small batches and process those batches
  • This approach allows us to leverage batch processing techniques and optimizations
  • It also simplifies fault tolerance, as we can reprocess a failed batch rather than dealing with individual records
  • Micro-batches are typically small, ranging from a few seconds to a minute
  • This approach is used by frameworks like Apache Spark Streaming and Apache Flink
• Event Time vs. Processing Time:
  • Event Time: The time at which the event occurred, as recorded in the data itself. This is important for time-based windowing and aggregations
  • Processing Time: The time at which the event is processed by the stream processing engine. This can lead to out-of-order processing if events arrive late
  • Most stream processing frameworks support both event time and processing time semantics, allowing you to choose based on your use case
  • Event time is crucial for applications that require accurate time-based processing, such as windowed aggregations or time-based joins
  • Processing time is often used for simpler use cases where the exact timing of events is less critical
  • Choosing between event time and processing time depends on the requirements of your application and the characteristics of your data
  • For example, if you're processing log data that arrives in order, processing time may be sufficient. However, if you're dealing with time-series data or events that can arrive out of order, event time is necessary to ensure accurate processing
  • Most stream processing frameworks support both event time and processing time semantics, allowing you to choose based on your use case
• Windowing: A way to group events into finite sets for processing. This is essential for aggregations and time-based calculations
  • Tumbling Windows: Fixed-size, non-overlapping windows (e.g., every 5 minutes)
  • Sliding Windows: Overlapping windows that can slide by a specified interval (e.g., every 2 minutes)
  • Session Windows: Group events based on periods of activity, with gaps of inactivity defining the boundaries
  • Windowing is crucial for time-based aggregations and calculations, such as calculating averages, sums, or counts over specific time intervals
  • Windowing allows us to perform time-based aggregations and calculations, such as calculating averages, sums, or counts over specific time intervals
  • It enables us to process data in manageable chunks, making it easier to handle large volumes of streaming data
• Stateful vs. Stateless Processing:
  • Stateless Processing: Each event is processed independently, without maintaining any state between events. Examples include simple transformations or filtering
  • Stateful Processing: Requires maintaining state between events, such as aggregating values or maintaining counters. This is more complex but allows for more sophisticated processing
  • Stateful processing is essential for applications that require context or history, such as calculating running totals, maintaining session information, or performing joins with historical data
  • Stateless processing is simpler and more efficient for tasks that don't require any context or history
• Fault Tolerance: Mechanisms to handle failures and ensure that no data is lost during processing
  • Most stream processing frameworks provide built-in fault tolerance through mechanisms like checkpointing and exactly-once semantics
  • Checkpointing saves the state of the stream processing job at regular intervals, allowing for recovery in case of failures
  • Exactly-once semantics ensure that each event is processed exactly once, even in the face of failures or retries
  • Fault tolerance is critical for ensuring data integrity and reliability in streaming applications
• Exactly-Once Semantics: Ensures that each event is processed exactly once, even in the face of failures or retries
  • This is crucial for applications where data integrity is paramount, such as financial transactions or order processing
  • Achieving exactly-once semantics can be complex and may involve a combination of idempotent processing, distributed transactions, and careful state management
  • Most stream processing frameworks provide built-in support for exactly-once semantics, but it may come with performance trade-offs
• Idempotent Processing: Ensures that processing the same event multiple times has the same effect as processing it once
  • This is important for achieving exactly-once semantics and can be implemented through techniques like deduplication or using unique identifiers for events
  • Idempotent processing allows for retries and recovery without introducing duplicate records or inconsistent state
  • It simplifies fault tolerance and makes the system more robust to failures
• Backpressure: A mechanism to handle situations where the stream processing engine cannot keep up with the incoming data rate
  • Backpressure allows the system to signal upstream sources to slow down or pause data production until the processing engine catches up
  • This prevents overwhelming the system and ensures that data is processed efficiently without dropping events
  • Most stream processing frameworks provide built-in support for backpressure, but it may require careful tuning of buffer sizes and processing rates
• Scalability: The ability to handle increasing data volumes and processing loads
  • Most stream processing frameworks are designed to be horizontally scalable, allowing you to add more resources (e.g., more nodes or instances) to handle larger workloads
  • Scalability is essential for handling spikes in data volume or processing requirements, ensuring that the system can grow with your needs
  • It may involve partitioning data streams, distributing processing tasks, and optimizing resource allocation
