Architecture & Systems Design Examples

Systems Design​

Most of this section is around prepping for interview Sys Design questions

This section is around using the below architecture components and implementations to build out high level systems design - common to what is seen in interviews:

  • Architecture components: Which are examples of production grade components for messaging, event based architecture, communication protocols, database storage, and other items
  • Typical reusable resources: Which are examples of these architecture components built from ground up
    • Under here are:
      • In memory implementations
      • Distributed implementations
        • In memory node + some manager and scaling

Search System

Some of the better examples so far:

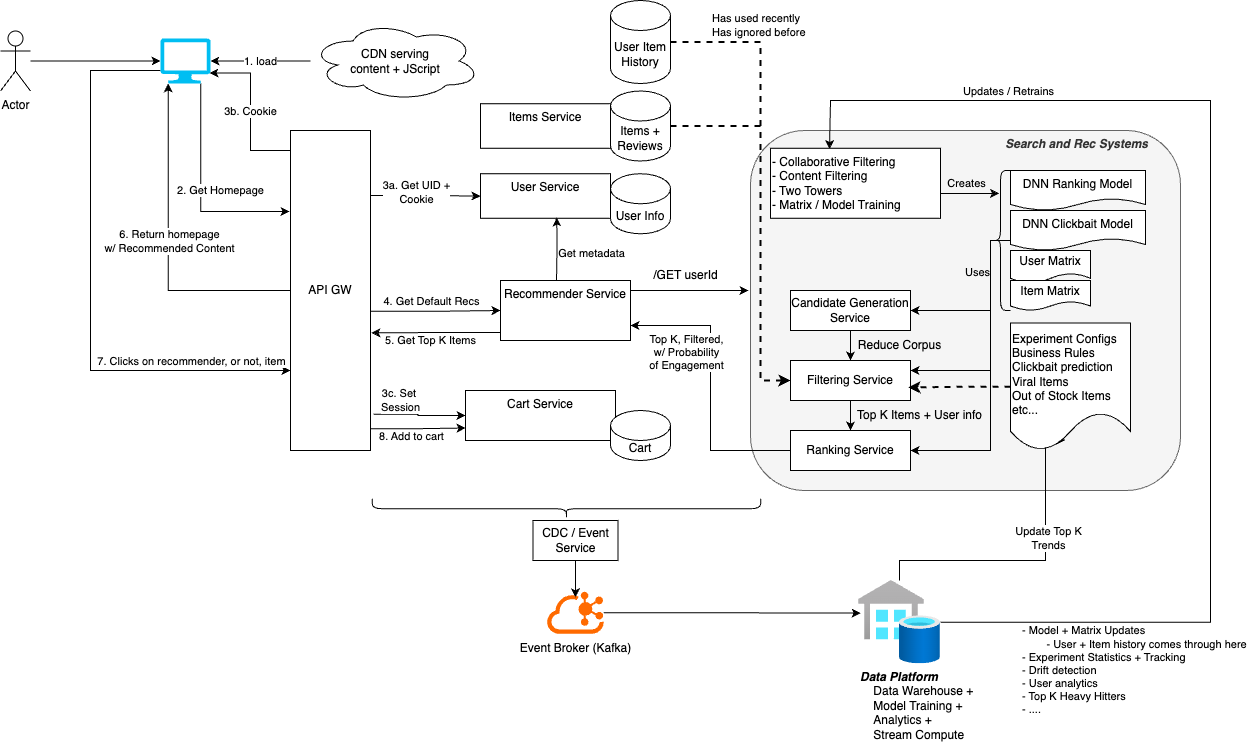

  • Search system which is a representation of a generic E-Commerce website search and recommendation system on user login
  • Video recommendations for recommending videos on a users feed (like Youtube)
  • Video serving (Youtube) showcases serving of actual videos with different encodings and features enables
  • Peer-to-peer describes a peer-2-peer filesharing service

General Notes​

There are some things that are generally true across system design questions

Functional Requirements​

Functional requirements demonstrate how a system should behave

These requirements describe what the system should do, such as "allow POST request to create a new User" or "be deployed in multiple partitioned regions for GDPR compliance"

These are the sorts of requirements you'd get from a product manager or some form of stakeholder, and then you'd need to design a system with other engineers given current environment

Non-Functional Requirements​

Non-Functional requirements describe how a system should perform

Non Functional requirements, I think, are things that are supposed to be derived from Functional Requirements...a NFRequirement of "Scalable" could be inferred from "Needs to be deployed to all users" where we know that there are millions of concurrent users at any time

Scalable​

This usually just means it's going to be called a lot, and so we'll need partitions, meaning there are tradeoffs on the Availability-Consistency spectrum we need to choose

  • Almost every system always needs to be scalable, i.e. needs partitions, i.e. has main trade-offs between availability and consistency
Durable​

Basically we need to write to disk somewhere

Availability-Consistency During Network Partition​

When we know we want a scalable, partitioned system we then need to choose what happens in the worst case (i.e. when there are breaks between the partitions)

  • When our partitions can't talk to each other do we keep the entire system up (Available) even if some of the nodes can't talk to each other (not Consistent)
  • Or do we ensure the system stays in it's last known Consistent state, but can't serve some requests (not Available)
Availability-Consistency In General​

Generally we still need to choose between highly performant availability, and linearizable consistency, or something inbetween

  • The typical example is read replicas of databases
  • If we have N read replicas, and there's 1 leader and N-1 replicas, do we allow those N-1 to serve reads after the 1 may have gotten a new write?
    • If we do we're choosing highly performant and highly available over strict consistency

There are ways to handle all of these trade-offs, and the Availability-Consistency spectrum spans a large space that's covered by many database types, isolation levels, and choices - all of them are useful in different scenarios
